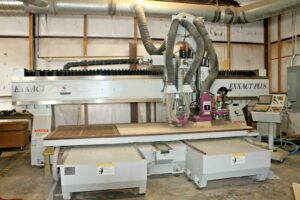

2002 Anderson Exxact Plus 5 x 12 ATC+MDrill+Horizontal Router

Description

2002 Anderson Exxact 5 x 12 ATC+MDrill+Horizontal Router with ONLY 3,500 hours

Anderson 5×12 Atc Mdrill



Even though this machine is a 2001 it has all the bells and whistles that you would want on a new machine without the lead time.
You may probably already know just how safe and reliable the Anderson CNC Routers, with Fanuc controls are but in case you dont.
Do not let the age worry you. The electrical, controller, and mechanical features are all faithfully maintained by Anderson America
located in Charlotte, NC one of the most reliable service providers in the country.

Advanced Machinery Automation will help you every step of the way from shipping, installation and training and even after the installation support.

Machine Description:

TECHNICAL SPECIFICATIONS:

Table size                                            3700 mm x 1600 mm (145” x 63”)

Pop-Up Positioning Pins                 10

Vacuum Zones per Table                 1 (one)

Axis stroke                                         X axis:             4450 mm (175”)
Y axis:             1775 mm (70”)
Z axis:             350 mm (13.8”)

Maximum Rapid Rate                     X-axis:            80 meters/min (3,150”/min)
Y-axis:             80 meters/min (3,150”/min)
Z-axis:             30 meters/min (1,180”/min)

Maximum Feed rate                         X-axis:            80 meters/min (3,150”/min)
Y-axis:            80 meters/min (3,150”/min)
Z-axis:            30 meters/min (1,180”/min)

Head #1 – Router with 10 station auto tool changer

Spindle type Anderson 4-Pole
Motor power 13.5Kw (S6): 11Kw (S1)
Spindle speed (RPM) 1000-22000
No. of changeable tools 10 per tool changer
Spindle nose HSK63F taper

Head # 2 – Multi Spindle Drill

Multi Spindle Drill (9, Individually selectable drills, on 32mm centers in L shaped pattern)
5 drills in X axis and 5 drills in Y axis for drilling adjustable shelf holes for example.

Head # 3 – Dedicated Servo Turning 4th Axis

This head is set up for Horizontal routing and drilling with a 360 degree programmable servo rotational axis.



FANUC  180i M Controller System + Windows PC Front End User Interface

This Anderson CNC Proudly uses the latest, Series 0i-MODEL D, with nano-resolution performance.
With over 700,000 systems installed, the 0/0from FANUC is by far the world’s most popular CNC control.
The Series 0i-MODEL D achieves the highest precision possible, with nanometer resolution standard throughout the CNC system.
Fast, high resolution 16-million count-per-revolution feedback devices combine to provide a superior surface finish quality when contouring.
This minimizes the need for secondary operations, reducing delivery times & part cost.

Vacuum hold down system:

1) 40hp Travini liquid ring vaccum pump

Machine approximate footprint
Floor area                    220” x 134”
Height                          116”

Net Machine Weight                           9,000 Kg*                    (19,840 lbs.)    *not including pump(s)
